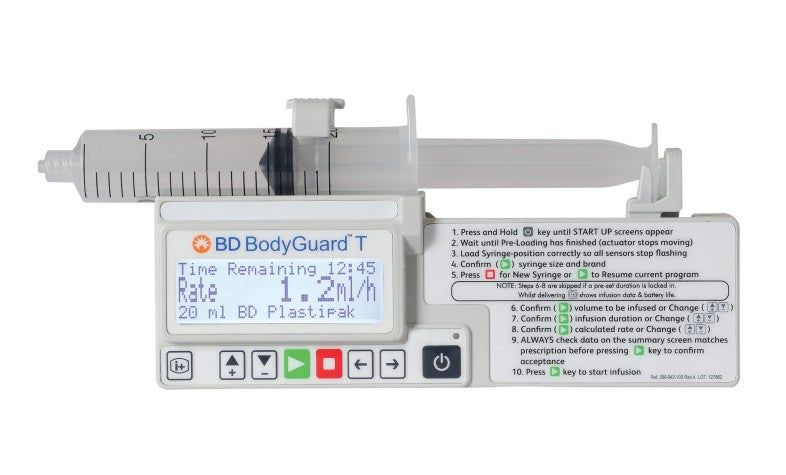

BD BodyGuard T Syringe Pump

The BD BodyGuard T Syringe Pump is a medical device used to administer precise and controlled amounts of fluids, medications, or nutrients to patients intravenously, subcutaneously, or epidurally. The BD BodyGuard T Syringe Driver consists of a syringe holder that accommodates various sizes of syringes and a mechanism that slowly pushes the plunger of the syringe to deliver the desired amount of liquid at a controlled rate.

The BD BodyGuard syringe pump is programmable, allowing healthcare providers to set specific infusion rates and dosage parameters, ensuring accurate and steady delivery of medications or fluids over a specified period. Syringe pumps are commonly employed in hospitals, clinics, and home care where precise drug administration and fluid management are crucial. Syringe pumps/drivers play a vital role in critical care, anesthesia, chemotherapy, and other medical procedures requiring controlled and continuous infusion of substances.

The BD BodyGuard T Syringe Pump Key Features:

• Device weight with no battery is 230 grams
• Height 169mm x width 53mm x depth 23mm
• Flow rate is adjustable from 0.1 ml/h to 650 ml/h
• KVO Operation Rate: 0 ml/h (OFF)–5.0 ml/h with ±5%* flow rate accuracy
• Bolus flow rate ranges from 1 to 650 ml/h
• Bolus volume increments 0.1 ml for 0 to 20 ml
• Programmable infusion time is 1 minute up to 99 hours
• Compatible with 2 ml to 50 ml syringes from major manufacturers**
• Conforms to current versions of standards such as IEC 60601-1, IEC 60601-1-2, IEC 60601-1-6, IEC 60601-1-8, IEC 60601-1-11, IEC 60601-2-24, IEC 62304, and IEC 62366
• Adjustable occlusion pressure setting between 200 and 1500 mmHg
• Post Occlusion Bolus Reduction System (POBRS)
• Battery is 9 V alkaline, IEC 6LR61 type, with rate options of 1 ml/h or 5 ml/h
• Approximate battery life is about 25 or 20 hours, depending on the rate selected
• Pump alarms/alerts: Triggers for Occlusion or Syringe Empty, Syringe Displaced during infusion, End Program, System Error, and End Battery
• Additional specifications: Insulation class II, type CF, IP22 Ingress Protection rating, equipped with a linear syringe driver mechanism
